Série RHO

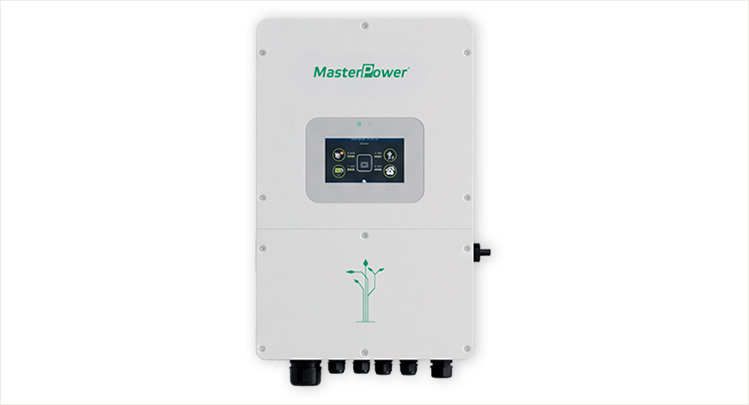

MF-RHO-6K-SP
Onduleur hybride monophasé et biphasé pour le raccordement au réseau, le stockage d'énergie ou le fonctionnement hors réseau.
Spécifications
| MODÈLE | MF-RHO-6K-SP |
|---|---|
| DC INPUT (PHOTOVOLTAIC) | |
| Max. Connectable PV Power | 12 kW |
| Maximum PV Input Power | 9..6 kW |
| Maximum PV Input Voltage | 600 V |
| Nominal Input Voltage | 360 V |
| MPPT Operating Voltage Range | 80 - 500 V |
| No. of independent MPPTs / Strings per MPPT | 2 / 1 |
| Maximum Current per MPPT | 2 x 20 A |
| Start-up Voltage | 100 V |
| AC OUTPUT / INPUT (GRID) | |
| Nominal Apparent Power | 6 kW |
| Maximum Apparent Power | 6.6 kVA |
| Nominal Voltage | 120 V / 240 V |
| Nominal Frequency | 60 Hz |
| Nominal Current | 25 A |
| Maximum Current | 27.5 A |
| Power Factor | -0.8 ~ +0.8 (adjustable) |
| THDi | < 3% (at rated power) |
| Grid Configuration | Split-phase, 2/3 phases, single-phase |
| Maximum AC Current from the Grid | 100 A |
| AC OUTPUT (BACK-UP) | |
| Nominal Apparent Output Power | 6 kW |
| Maximum Apparent Output Power | 6.6 kVA |
| Nominal Output Voltage | 120 V / 240 V |
| Nominal Ouput Frequency | 60 Hz |
| Output THDv | 3% |
| Automatic TransferTime | < 10 ms |
| BATTERY INPUT DATA | |
| Battery Type | Lithium (Li-Ion) / Lead-acid |
| Battery Voltage Range | 40 V ~ 60 V |
| Maximum Charging / Discharging Current | 135 A |
| Charging Strategy for Lithium Battery | BMS self-adaptation |
| EFFICIENCY | |
| Maximum Efficiency | 99..9% |
| Europe Efficiency | 97.5% |
| Maximum Battery to Load Efficiency | 94.5% |
| PROTECTIONS | |
| Anti Islanding Protection | Yes |
| Insulation Impedance Protection | Yes |
| Residual Current Detection (RCD) | Yes |
| PV Reverse Polarity Protection | Yes |
| Output Over Voltage Protection | Yes |
| Output Over Current Protection | Yes |
| GENERAL DATA | |
| Dimensions (L / W / H) in mm | 425 / 290 / 660 |
| Weight | 40 kg |
| Operation Temperature Range | -25°C - 60°C |
| Cooling System | Intelligent cooling |
| NEMA Enclosure | Type 4 |
| Maximum Altitude | 4,000 m |
| Night self-Consumption | < 3 W |
| Topology | Transformerless |
| FEATURES | |
| LCD Display | Yes |
| Communication Interface | WiFi / 4G / USB / CAN / RS485 |
| Standards | UL 1741, IEEE 1547.1, SRD V2.0, FCC, RETIE |
Les spécifications du produit sont sujettes à modification sans préavis.
