Série RHO

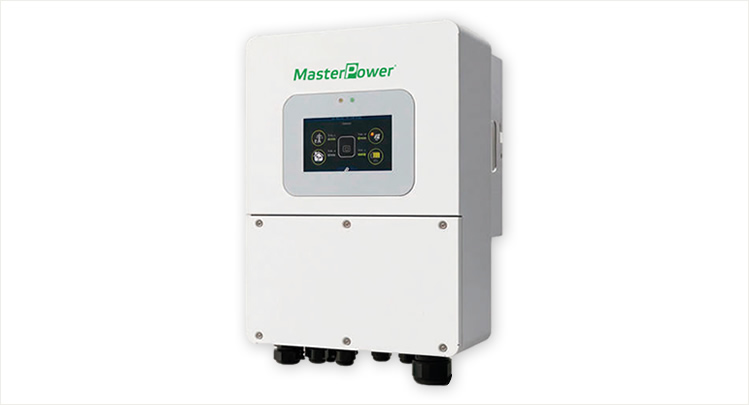

MF-RHO-10K-LV
Onduleur hybride monophasé de 10 kW conçu pour optimiser la gestion de l'énergie solaire et des batteries basse tension. Il prend en charge une puissance d'entrée photovoltaïque allant jusqu'à 16 kW, des batteries de 40 à 60 V, des courants de charge/décharge pouvant atteindre 180 A et un temps de commutation inférieur à 10 ms, offrant ainsi une solution efficace, flexible et fiable pour l'autoconsommation et l'alimentation de secours.
Traduit avec DeepL.com (version gratuite).
Spécifications
| MODÈLE | MF-RHO-10K-LV |
|---|---|
| INPUT DC (PV SIDE) | |
| Maximum PV Access Power | 20 kW |
| Maximum PV Input Power | 1.6 kW |
| Maximum PV Input Voltage | 550 V |
| Nominal Input Voltage | 360 V |
| MPPT Working Voltage Range | 80 - 500 V |
| Number of Independent MPPT / Strings per MPPT | 2 / 2 |
| MPPT Maximum Current | 36 A / 36 A |
| Start-up Voltage | 120 V |
| OUTPUT / INPUT AC (GRID SIDE) | |
| Nominal Power | 10 kW |
| Maximum Apparent Power | 11 kVA |
| Nominal Voltage | 220 V / 230 V |
| Nominal Frequency | 50 Hz / 60 Hz |
| Rated Current | 45.4 A / 43.4 A |
| Maximum Current | 50 A |
| Power Factor | -0.8 ~ +0.8 (adjustable) |
| THDi | < 3% (Nominal Output) |
| Grid System Pattern | L + N + PE |
| Maximum AC Current from Utility Grid | 80 A |
| OUTPUT AC (BACK-UP) | |
| Nominal Output Power | 10 kW |
| Maximum Output Apparent Power | 11 kVA |
| Nominal Output Voltage | 220 V / 230 V |
| Nominal Ouput Frequency | 50 Hz / 60 Hz |
| Output THDV | < 3% |
| Automatic Switch Time | < 10 ms |
| BATTERY | |
| Battery Type | Li-ion / Lead-acid |
| Battery Voltage Range | 40 V ~ 60 V |
| Maximum Charging / Discharging Current | 180 A |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Charging Strategy for Lead-acid Battery | Three-stage |
| EFFICIENCY | |
| Maximum MPPT Efficiency | 99..9% |
| Europe Efficiency | 97.5% |
| Maximum Battery to Load Efficiency | 94% |
| PROTECTION | |
| Anti Islanding Protection | Yes |
| Insulation Impedance Protection | Yes |
| RCD Detection | Yes |
| PV Reverse Polarity Protection | Yes |
| Output Over Voltage Protection | Yes |
| Output Over Current Protection | Yes |
| GENERAL DATA | |
| Dimensions (L / W / H) in mm | 375 / 265 / 513 |
| Weight | 27 kg |
| Operation Temperature Range | -25°C - 60°C |
| Heat Dissipation Mode | Smart cooling |
| IP Class | IP66 |
| Maximum Altitude | 4000 m |
| Self-Consumption Night | < 3 W |
| FEATURES | |
| LCD Display | Yes |
| Communication Interface | WiFi / 4G / USB / CAN / RS485 |
| Standards | IEC/EN 62109, IEC/EN 62477, IEC/EN 61000, CEI 0-21, NTS-631, RD647, UNE 217001, UNE 217002, VDE 4105, IEC 61727, IEC 62116, IEC 61683, EN 50549, G98, G99, NRS 097, UTE C 15, VDE 0126 |
Les spécifications du produit sont sujettes à modification sans préavis.
