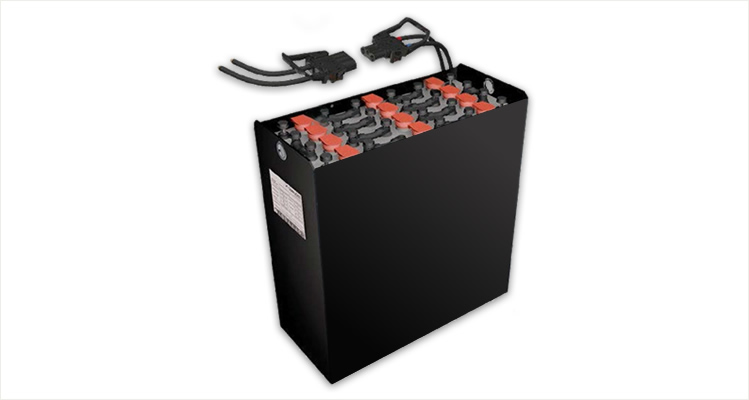

BS - Cell Range

BS - Cell Range

BS - Cell Range

Características
Disponible en todas las configuraciones de voltaje y celda.
Recipientes de acero totalmente revestidos de plástico en diferentes dimensiones.
Los pernos y los conectores aislados aumentan la seguridad del usuario y simplifican el mantenimiento y la reparación.
Una gama completa de accesorios que cubren prácticamente todas las necesidades.
Adecuado para todas las aplicaciones, desde trabajos livianos hasta trabajos pesados.

SOLUCIONES

+PENSAR +CONSTRUIR

Aplicaciones

  • Carretillas elevadoras
  • Máquinas de limpieza
  • Vehículos eléctricos
  • Disponibilidad en cualquier
          configuración de voltaje y formas

Especificaciones

Plate Type: 23 Ah****
Type Designation Nominal Capacity
Ah (C5)*
Max cell dimensions mm*** Weight in kg**
b: 158 h1: 203
h2: 230
l
2 PzB 46 46 45 3.9
3 PzB 69 69 61 5.3
4 PzB 92 92 77 6.7
5 PzB 115 115 93 8.1
6 PzB 138 138 109 9.5
Plate Type: 32 Ah****
Type Designation Nominal Capacity
Ah (C5)*
Max cell dimensions mm*** Weight in kg**
b: 158 h1: 265
h2: 292
l
2 PzB 64 64 45 5.0
3 PzB 96 96 61 6.8
4 PzB 128 128 77 8.7
5 PzB 160 160 93 10.6
6 PzB 192 192 109 12.5
7 PzB 224 224 125 14.4
8 PzB 256 256 141 16.2
Plate Type: 42 Ah****
Type Designation Nominal Capacity
Ah (C5)*
Max cell dimensions mm*** Weight in kg**
b: 158 h1: 331
h2: 358
l
2 PzB 84 84 45 6.5
3 PzB 126 126 61 8.9
4 PzB 168 168 77 11.4
5 PzB 210 210 93 13.8
6 PzB 252 252 109 16.3
7 PzB 294 294 125 18.8
8 PzB 336 336 141 21.2
Plate Type: 55 Ah
Type Designation Nominal Capacity
Ah (C5)*
Max cell dimensions mm*** Weight in kg**
b: 158 h1: 401
h2: 428
l
2 PzB 110 110 45 7.9
3 PzB 165 165 61 11.0
4 PzB 220 220 77 14.0
5 PzB 275 275 93 17.1
6 PzB 330 330 109 20.1
7 PzB 385 385 125 23.2
8 PzB 440 440 141 26.2
9 PzB 495 495 157 29.2
10 PzB 550 550 173 32.3
Plate Type: 65 Ah
Type Designation Nominal Capacity
Ah (C5)*
Max cell dimensions mm*** Weight in kg**
b: 158 h1: 457
h2: 484
l
2 PzB 130 130 45 9.1
3 PzB 195 195 61 12.5
4 PzB 260 260 77 16.1
5 PzB 325 325 93 19.5
6 PzB 390 390 109 23.0
7 PzB 455 455 125 26.5
8 PzB 520 520 141 30.1
9 PzB 585 585 157 33.5
10 PzB 650 650 173 37.0
Plate Type: 75 Ah
Type Designation Nominal Capacity
Ah (C5)*
Max cell dimensions mm*** Weight in kg**
b: 158 h1: 514
h2: 541
l
2 PzB 150 150 45 10.3
3 PzB 225 225 61 14.2
4 PzB 300 300 77 18.2
5 PzB 375 375 93 22.2
6 PzB 450 450 109 26.2
7 PzB 525 525 125 30.2
8 PzB 600 600 141 34.2
9 PzB 675 675 157 38.2
10 PzB 750 750 173 42.2
Plate Type: 85 Ah
Type Designation Nominal Capacity
Ah (C5)*
Max cell dimensions mm*** Weight in kg**
b: 158 h1: 570
h2: 597
l
2 PzB 170 170 45 11.5
3 PzB 255 255 61 16.2
4 PzB 340 340 77 20.5
5 PzB 425 425 93 25.0
6 PzB 510 510 109 29.4
7 PzB 595 595 125 33.8
8 PzB 680 680 141 38.4
9 PzB 765 765 157 42.6
10 PzB 850 850 173 47.2
Plate Type: 100 Ah
Type Designation Nominal Capacity
Ah (C5)*
Max cell dimensions mm*** Weight in kg**
b: 158 h1: 606
h2: 633
l
2 PzB 200 200 45 12.3
3 PzB 300 300 61 16.8
4 PzB 400 400 77 21.5
5 PzB 500 500 93 26.1
6 PzB 600 600 109 30.8
7 PzB 700 700 125 35.4
8 PzB 800 800 141 40.1
9 PzB 900 900 157 44.5
10 PzB 1000 1000 173 48.9
Plate Type: 105 Ah
Type Designation Nominal Capacity
Ah (C5)*
Max cell dimensions mm*** Weight in kg**
b: 158 h1: 686
h2: 713
l
2 PzB 210 210 45 14.1
3 PzB 315 315 61 19.4
4 PzB 420 420 77 24.8
5 PzB 525 525 93 30.1
6 PzB 630 630 109 35.4
7 PzB 735 735 125 40.9
8 PzB 840 840 141 46.3

* Según la norma IEC 60254- Parte 1
** Peso de células rellenas y cargadas ± 5%
*** Dimensiones Células ± 2 mm, según IEC 60254- Parte 2
**** Disponible bajo petición
