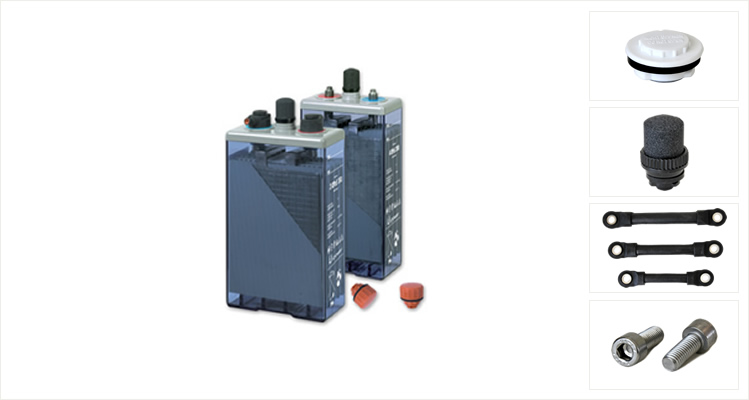

Serie UP-OPzS Cells

Serie UP-OPzS Cells

Serie UP-OPzS Cells

OPzS Cells

Vida útil
20 años a 20°C.
Intervalo de rellenado de agua
Más de 2 años a 20°C.
IIEC 896-1 ciclos
2300 ciclos.
Auto-descarga
Aprox. 2% al mes a 20°C.
Temperatura de trabajo
-20°C a 55°C, recomendado de 10°C a 30°C.
Conformes a
DIN 40737-1, IIEC 896-11 y EN 50272-2.

SOLUCIONES

+PENSAR +CONSTRUIR

Aplicaciones

  • Energía solar
  • Telecomunicaciones
  • UPS
  • Luces de emergencia
  • Sistemas de alarma
          y monitorización de centrales
          eléctricas
  • Estaciones de distribución
  • Estaciones de ferrocarril
  • Aeropuertos
  • etc ...
  • Especificaciones

    Modelo 1,80 V
    a 20°C
    1,85 V
    a 20°C
    Longitud
    (mm/inch)
    Anchura
    (mm/inch)
    Altura
    (mm/inch)
    Altura Total
    (mm/inch)
    Peso IR mΩ Corriente de
    Cortocircuito
    (A)
    Nº.
    de Polos
    Ficha
    (PDF)
    Capacidad
    C10 (Ah)
    Capacidad
    C100 (Ah)
    Húmedo
    (kg)
    Seco
    (kg)
    0002 OPzS 100 131 197 103 / 4.06 206 / 8.11 355 / 13.98 383 / 15.08 13.4 8.2 1.430 1420 2
    0103 OPzS 150 187 281 103 / 4.06 206 / 8.11 355 / 13.98 383 / 15.08 15.6 10.6 0.950 2120 2
    0114 OPzS 200 215 322 103 / 4.06 206 / 8.11 355 / 13.98 383 / 15.08 17.5 12.8 0.740 2720 2
    0125 OPzS 250 270 405 124 / 4.88 206 / 8.11 355 / 13.98 383 / 15.08 21.2 15.4 0.590 3420 2
    0136 OPzS 300 324 486 145 / 5.71 206 / 8.11 355 / 13.98 383 / 15.08 24.9 18.0 0.510 3940 2
    0145 OPzS 350 396 594 124 / 4.88 206 / 8.11 471 / 18.54 499 / 19.65 28.6 20.7 0.540 3750 2
    0156 OPzS 420 474 711 145 / 5.71 206 / 8.11 471 / 18.54 499 / 19.65 33.5 24.2 0.460 4400 2
    0167 OPzS 490 541 811 166 / 6.54 206 / 8.11 471 / 18.54 499 / 19.65 38.4 27.6 0.410 4950 2
    0175 OPzS 500 659 988 145 / 5.71 206 / 8.11 646 / 25.43 674 / 26.54 42.3 29.3 0.510 3950 2
    0186 OPzS 600 672 1008 145 / 5.71 206 / 8.11 646 / 25.43 674 / 26.54 46.5 33.7 0.430 4700 2
    0197 OPzS 700 905 1358 191 / 7.52 210 / 8.27 646 / 25.43 674 / 26.54 59.4 42.4 0.360 5600 4
    0208 OPzS 800 893 1339 191 / 7.52 210 / 8.27 646 / 25.43 674 / 26.54 63.5 46.7 0.310 6500 4
    0219 OPzS 900 1116 1675 233 / 9.17 210 / 8.27 646 / 25.43 674 / 26.54 73.5 52.3 0.280 7250 4
    02210 OPzS 1000 1114 1671 233 / 9.17 210 / 8.27 646 / 25.43 674 / 26.54 77.6 56.7 0.250 8100 4
    02311 OPzS 1100 1402 1978 275 / 10.83 210 / 8.27 646 / 25.43 674 / 26.54 87.7 62.4 0.240 8450 4
    02412 OPzS 1200 1329 1993 275 / 10.83 210 / 8.27 646 / 25.43 674 / 26.54 91.9 66.8 0.220 9250 4
    02511 OPzS 1375 1699 2548 275 / 10.83 210 / 8.27 797 / 31.38 825 / 32.48 108.9 77.0 0.230 8800 4
    02612 OPzS 1500 1630 2445 275 / 10.83 210 / 8.27 797 / 31.38 825 / 32.48 114.1 82.5 0.220 9200 4
    02714 OPzS 1750 2156 3234 399 / 15.71 214 / 8.43 772 / 30.39 800 / 31.50 145.9 100.4 0.190 10650 6
    02815 OPzS 1875 2250 3374 399 / 15.71 214 / 8.43 772 / 30.39 800 / 31.50 151.0 106.0 0.170 11900 6
    02916 OPzS 2000 2186 3279 399 / 15.71 214 / 8.43 772 / 30.39 800 / 31.50 156.2 111.5 0.156 12950 6
    03018 OPzS 2250 2808 4210 487 / 19.17 212 / 8.35 772 / 30.39 800 / 31.50 183.7 128.6 0.137 14750 8
    03120 OPzS 2500 2926 4017 487 / 19.17 212 / 8.35 772 / 30.39 800 / 31.50 194.1 139.6 0.122 16550 8
    03222 OPzS 2750 3276 4775 576 / 22.68 212 / 8.35 772 / 30.39 800 / 31.50 219.7 153.8 0.114 17700 8
    03324 OPzS 3000 3497 5247 576 / 22.68 212 / 8.35 772 / 30.39 800 / 31.50 229.9 165.0 0.105 19250 8
    03426 OPzS 3250 3671 5355 576 / 22.68 212 / 8.35 772 / 30.39 800 / 31.50 240.3 176.0 0.098 20600 8
