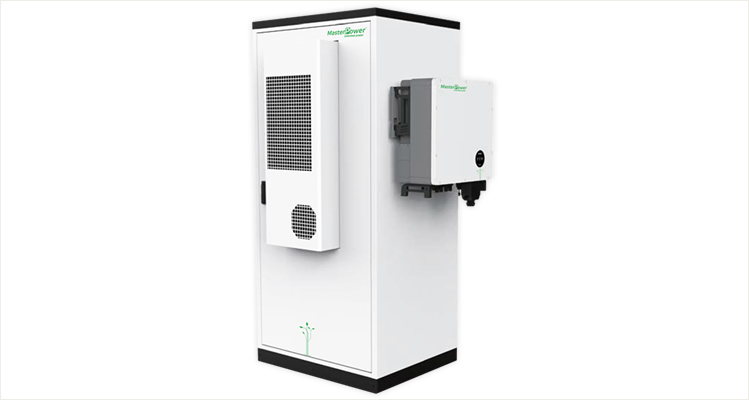

GreenB + GreenH Series
All-in-one Battery 100K + Hybrid Inverter 50K
Safe & Reliable
CATL LFP Battery Cell.
Double Fire Suppression System Design.
1+1 Redundancy Design.
Simple & User-friendly
Pre-installed in Factory for Easy Installation on Site.
Integrated BMS/EMS, Suitable for Various Applications.
Effortless Operation, Cloud Control.
Economical & Efficient
Save Capex, Expanding as Required.
Efficient and Energy-saving HVAC Design.
SOLUTIONS
+THINK +CONSTRUCT
Specifications
| MODEL | GreenB 100K |
|---|---|
| TECHNICAL PARAMETERS | |
| Battery Type | LFP |
| Battery Module Capacity | 5.12 kWh |
| Number of Modules | 10*2 |
| Total Battery Capacity | 102.4 kWh |
| Nominal Voltage | 512 V |
| Operating Voltage Range | 448 V ~ 565 V |
| Charge / Discharge Rate | Maximum 0.5C |
| DoD | 90% |
| GENERAL PARAMETERS | |
| Dimensions (W x D x H) | 1100 x 1100 x 2380 mm |
| Weight | < 1.5 T |
| Installation Site | Outdoor |
| IP Protection | IP54 |
| Anti Corrosion Level | C4 |
| Operation Humidity | 5% ~ 95% (No Condensing) |
| Operation Temperature | -30°C ~ +50°C |
| Maximum Operation Altitude | 4000 m ( > 3000 m Derating) |
| Communication Port | Ethernet; CAN |
| Communication Protocol | CAN; MODBUS TCP/IP |
| Cooling Method | Air Conditioner |
| Standards | IEC62619-2017; UN38.3; IEC61000-6-2/4 |
| MODEL | GreenH 50K |
|---|---|
| PV SIDE | |
| Maximum Input Voltage | 1000 V |
| Maximum PV Power | 75 kW |
| MPPT Voltage Range | 350V ~ 800 V |
| Maximum Current per MPPT | 36 A |
| Number of MPPT | 3 |
| Number of Inputs Per MPPT | 2 |
| BATTERY SIDE | |
| Maximum Input Voltage | 750 V |
| Minimum Input Voltage | 350 V |
| DC Voltage at Nominal Operation | 500 V ~ 750 V |
| Maximum DC Current | 50 A*2 |
| Maximum DC Input Power | 55 kW |
| Number of DC Inputs | 2 |
| AC SIDE (ON GRID) | |
| Nominal AC Output Power | 50 kW |
| Maximum AC Output Power | 55 kVA |
| Maximum AC Current | 80 A |
| Nominal AC Voltage | 400 V |
| AC Voltage Range | 340 V ~ 440 V |
| Nominal Grid Frequency / Frequency Range | 50 / 60 Hz ± 5 Hz |
| THDv | < 3% (100% Load） |
| Adjustable PF Range | -1 (Lagging) ~ 1 (Leading) |
| AC SIDE (OFF GRID) | |
| Nominal AC Voltage | 230 / 400 V ± 3%; 3L + N + PE |
| THDv | < 3% (Linear Load) |
| Nominal Grid Frequency / Frequency Range | 50 / 60 Hz |
| Nominal AC Output Power | 50 kW |
| Maximum AC Output Power | 55 kVA |
| EFFICIENCY | |
| Maximum Efficiency | 97.5% |
| PROTECTION | |
| Reverse Connection Protection | Yes |
| DC Switch | Yes |
| Over-Temperature Protection | Yes |
| Grid Monitoring / Earthing Fault Detection | Yes |
| Insulation Monitoring | Yes |
| DC / AC Surge Protection | DC Type II; AC Type II |
| GENERAL PARAMETERS | |
| Dimensions (W x H x D) | 650*715*325 mm |
| Weight | 62 kg |
| Topology | Transformerless |
| IP Protection | IP65 |
| Operation Temperature Range | -25 ~ 60°C ( > 45°C Derating） |
| Operation Humidity Range | 0 ~ 100% (No Condensing) |
| Cooling Method | Intelligent Air Cooling |
| Maximum Operation Altitude | 4000m ( > 3000 m Derating） |
| Communication Port | RS485 / CAN |
| Standards | IEC 62477, IEC61000, CE, GB/T |
Product specifications are subject to change without further notice.
